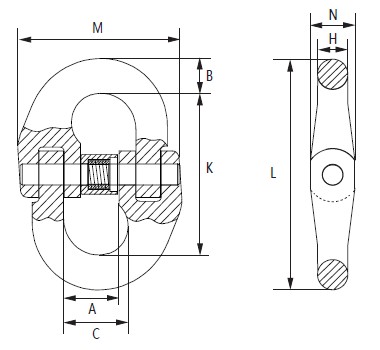

ITEM NO. | WLL | Breaking Load | Size(mm) | Weight | |||||||
T | T | A | B | C | L | K | H | M | N | kg | |
R004-1.12T | 1.12 | 4.48 | 15.5±1 | 7.5±0.5 | 17.4±1 | 54±2.5 | 39±2 | 7±0.5 | 42±2 | 11±1 | 0.08 |
R004-2T | 2 | 8 | 19.5±1 | 9.5±0.5 | 23±1 | 77±2.5 | 58±2 | 8.5±0.5 | 55±2 | 13.6±1 | 0.16 |
R004-3.15T | 3.15 | 12.6 | 26±1 | 12±0.5 | 28.5±1 | 92±2.5 | 69±2 | 11.5±1 | 69±2 | 17.8±1 | 0.32 |
R004-5.3T | 5.3 | 21.2 | 30±1.5 | 15±0.5 | 35±1.5 | 115±3 | 85±2.5 | 15±1 | 86.6±2 | 25±1 | 0.69 |
R004-8T | 8 | 32 | 35±1.5 | 19.8±0.5 | 39±1.5 | 142±3 | 102±2.5 | 19.8±1 | 103±2.5 | 30±1.5 | 1.2 |
R004-10T | 10 | 40 | 38±1.5 | 21±1 | 42±1.5 | 151±3 | 109±3 | 21±1 | 111±2.5 | 32±1.5 | 1.51 |
R004-12.5T | 12.5 | 50 | 41.8±1.5 | 24±1 | 46±1.5 | 166±3 | 118±3 | 22±1 | 120±2.5 | 34±1.5 | 1.97 |
R004-15T | 15 | 60 | 49.5±1.5 | 26±1 | 57±1.5 | 190±3 | 140±3 | 26.8±1 | 147±3 | 40±1.5 | 3.07 |
R004-21.2T | 21.2 | 84.8 | 58±2 | 31±1 | 67.5±2 | 216±3.5 | 154±3 | 30±1.5 | 174±3 | 44±1.5 | 4.68 |
R004-31.5T | 31.5 | 126 | 67.5±2 | 38±1 | 84.5±2 | 277±3.5 | 204±3.5 | 37±1.5 | 214±3.5 | 56±2 | 8.75 |
