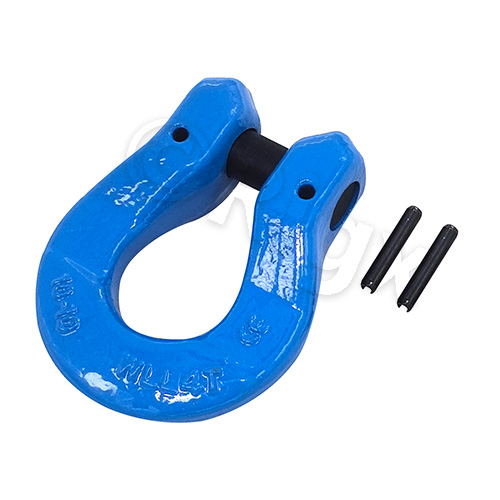

G100 Omega Link

Feature:

  • Manufactured from alloy steel through forging and heat treatment processes
  • 25% stronger than G80 chains
  • Each unit undergoes proof testing at 2.5 times the working load limit (WLL) and 100% magnetic particle inspection
  • Sampling fatigue testing up to 20,000 cycles, with strict batch-wise destructive testing
  • Trict sampling and destructive testing conducted on each production batch
  • Compatible with EN 818-2 G100 chain assemblies
  • Surface treatment: Blue plastic coating
Product Parameter

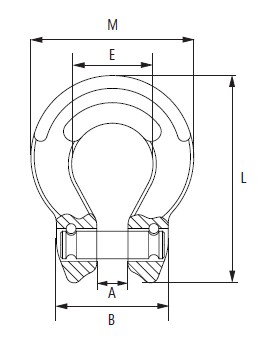

ITEM No. WLL(T) Breaking Load Size(mm) Weight
T T A±1 B±2 E±1.5 M±2 L±2 kg
R007-1.4T 1.4 5.6 8.5 32.5 20 44 55 0.12
R007-2.5T 2.5 10 10.5 42 24 60 73.5 0.27
R007-4T 4 16 12.5 48.5 31 70 90 0.44
R007-6.7T 6.7 26.8 16 60 38.8 90 109 0.89
R007-10T 10 40 19 75.5 51 112 141.5 1.77
