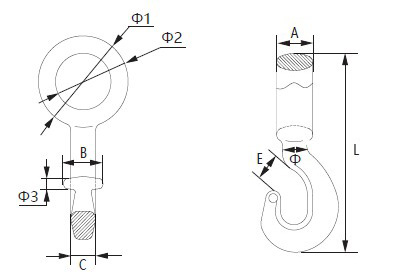

| 规格型号 | 额载 | 破断 | 尺寸（mm） | 自重 | ||||||||
| T | T | A±2.5 | B±2 | C±1.5 | Φ±1 | Φ1±2.5 | Φ2±2.5 | Φ3 | E±1 | L±2.5 | kg | |
| R013-2T | 2 | 8 | 19 | 28 | 16.5 | 17 | 52 | 30.5 | 7.5 | 16 | 123 | 0.36 |
| R013-3.2T | 3.2 | 12.8 | 26 | 40 | 17.5 | 20 | 68 | 39 | 8 | 20 | 157 | 0.72 |
| R013-5.4T | 5.4 | 21.6 | 34 | 43 | 21 | 25 | 87 | 53 | 10 | 27 | 196.5 | 1.4 |
| R013-8.2T | 8.2 | 32.8 | 51 | 45.5 | 31 | 30 | 108 | 64 | 10.5 | 30 | 246 | 3.17 |
| R013-10T | 10 | 40 | 49.5 | 53 | 33.5 | 33.5 | 121 | 75 | 12 | 36.5 | 268.6 | 3.8 |
| R013-15.3T | 15.3 | 61.2 | 70 | 80 | 44 | 52 | 146 | 84 | 14 | 47 | 367 | 8.95 |
| R013-21.2T | 21.2 | 84.8 | 80 | 80 | 44 | 60 | 180 | 100 | 24.3 | 44 | 417 | 16.65 |
