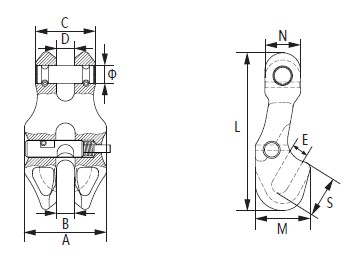

| ITEM NO. | WLL | Breaking Load | Size（mm） | Weight | |||||||||
| T | T | A | B | C | D | E | Φ | L±3 | M | N | S | kg | |
| R016-1.12T | 1.12 | 4.48 | 38 | 7.5 | 27 | 7.5 | 7.5 | 7.7 | 73 | 27 | 16 | 20.9 | 0.25 |
| R016-2T | 2 | 8 | 50 | 9.5 | 33 | 9.5 | 9.2 | 9.2 | 92 | 33 | 23 | 22.6 | 0.41 |
| R016-3.15T | 3.15 | 12.6 | 60 | 11.5 | 43 | 11.5 | 12 | 13.3 | 115 | 42.2 | 26 | 31 | 0.82 |
| R016-5.3T | 5.3 | 21.2 | 79 | 15 | 55 | 15 | 15.5 | 16.3 | 149 | 54 | 34 | 38.4 | 1.67 |
| R016-8T | 8 | 32 | 98 | 19 | 70 | 19 | 18.5 | 19.7 | 184 | 70 | 40 | 49.8 | 3.85 |
