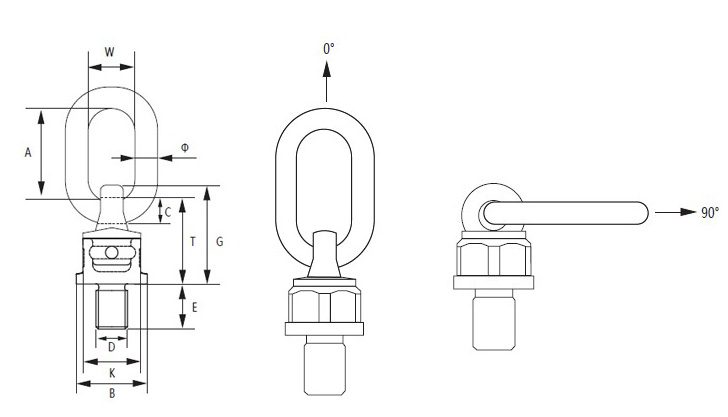

| Item | WLL(T) | Size（mm） | Weight | |||||||||
| 90° | 0° | D*E | B | C | G | T | A | W | Φ | K | kg | |
| R022-M8*13 | 0.3 | 0.6 | M8*13 | 36 | 16.5 | 52 | 43 | 55 | 30 | 14 | 30 | 0.43 |
| R022-M10*18 | 0.5 | 1 | M10*18 | 36 | 16.5 | 52 | 43 | 55 | 30 | 14 | 30 | 0.45 |
| R022-M12*18 | 0.5 | 1 | M12*18 | 36 | 16.5 | 52 | 43 | 55 | 30 | 14 | 30 | 0.46 |
| R022-M16*20 | 1.12 | 2 | M16*20 | 36 | 16.5 | 52 | 43 | 55 | 30 | 14 | 30 | 0.47 |
| R022-M20*30 | 2 | 4 | M20*30 | 49.5 | 19 | 69 | 57 | 70 | 35 | 16 | 41 | 0.99 |
| R022-M24*30 | 3.15 | 6.3 | M24*30 | 57 | 22 | 79.5 | 67 | 85 | 40 | 18 | 46 | 1.33 |
| R022-M27*35 | 3.15 | 6.3 | M27*35 | 57 | 22 | 79.5 | 67 | 85 | 40 | 18 | 46 | 1.47 |
| R022-M30*35 | 5.3 | 10.6 | M30*35 | 66 | 23.5 | 98 | 82 | 85 | 40 | 20 | 54 | 2.3 |
| R022-M36*50 | 8 | 11.8 | M36*50 | 80 | 28 | 111 | 92 | 115 | 50 | 22 | 65 | 3.88 |
| R022-M42*50 | 10 | 15 | M42*50 | 80 | 28 | 111 | 92 | 115 | 50 | 25 | 65 | 4.46 |
| R022-M48*50 | 10 | 15 | M48*50 | 80 | 28 | 111 | 92 | 115 | 50 | 25 | 65 | 4.63 |
| R022-M56*84 | 15 | 25 | M56*84 | 117 | 42 | 166 | 134 | 152 | 70 | 32 | 95 | 11.8 |
| R022-M64*95 | 15 | 25 | M64*95 | 117 | 42 | 166 | 134 | 152 | 70 | 32 | 95 | 12.5 |
