LB9 Lifting Beam

Feature:

  • Complies with GB/T26079-2010、EN 13155:2003+A2:2009
  • Suitable for occasions with headroom restrictions
  • Mountain-shaped hook design enables easy sling attachment, quick position adjustment, and wider size compatibility
  • Customized according to customer requirements
  • Comprehensive strength calculation reports provided for all designs
Product Parameter

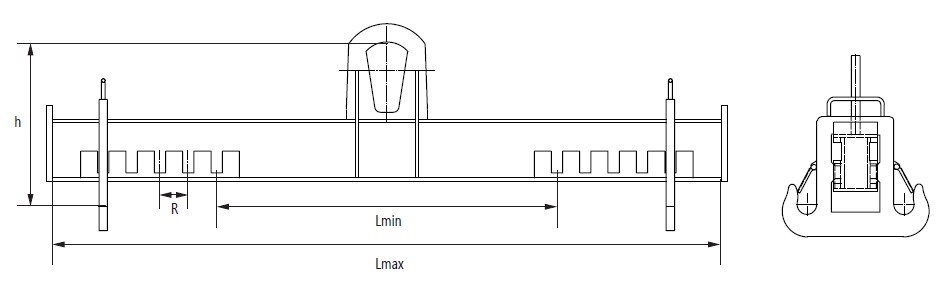

Item WLL L Max / Min Slot size Height Lifting Lug Size Weight
T  L(mm) R(mm) h(mm) mm kg
LB9-1A 1 1000/600 2 x 100 260 60 x 90 45
LB9-1B 1 2000/1000 5 x 100 260 60 x 90 80
LB9-1C 1 3000/1600 7 x 100 260 60 x 90 106
LB9-2A 2 2000/1000 5 x 100 260 60 x 90 120
LB9-2B 2 3000/1600 7 x 100 280 60 x 90 150
LB9-2C 2 4000/2000 10 x 100 280 60 x 90 200
LB9-3A 3 2000/1000 5 x 100 280 80 x 120 128
LB9-3B 3 3000/1600 7 x 100 280 80 x 120 160
LB9-3C 3 4000/2000 10 x 100 300 80 x 120 214
LB9-5A 5 2000/1000 5 x 100 300 80 x 120 150
LB9-5B 5 3000/1600 7 x 100 320 80 x 120 230
LB9-5C 5 4000/2000 10 x 100 340 80 x 120 300
LB9-8A 8 2000/1000 5 x 100 350 100 x 150 185
LB9-8B 8 3000/1600 7 x 100 365 100 x 150 325
LB9-8C 8 4000/2000 10 x 100 385 100 x 150 390
LB9-10A 10 2000/1000 5 x 100 365 100 x 150 265
LB9-10B 10 3000/1600 7 x 100 385 100 x 150 390
LB9-10C 10 4000/2000 10 x 100 405 100 x 150 486
