LB11 Lifting Beam

Feature:

  • Complies with GB/T26079-2010、EN 13155:2003+A2:2009
  • Suitable for occasions with headroom restrictions
  • Adjustable lifting point design accommodates more sizes for wider applications
  • Customized according to customer requirements
  • Comprehensive strength calculation reports provided for all designs
Product Parameter

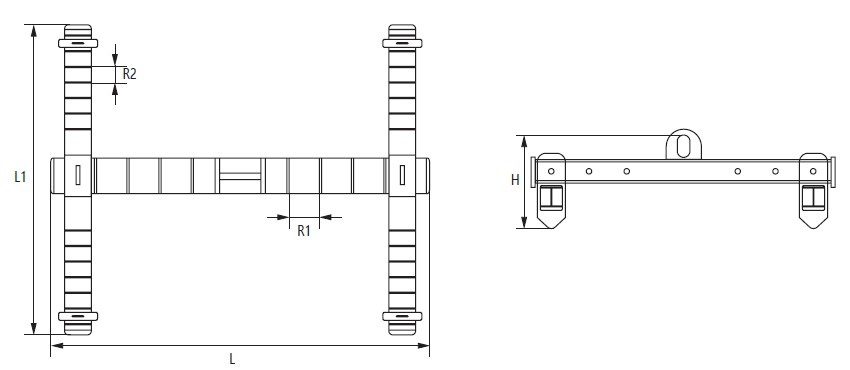

Item WLL Length L Width L1 Slot Size R1 Slot Size R2 Overall Height Hanging Hole Size Weight
T mm kg
LB11-2A 2 2000 1000 100 100 490 60 x 90 140
LB11-2B 2 3000 2000 150 150 510 60 x 90 220
LB11-2C 2 4000 2000 150 150 510 60 x 90 240
LB11-2D 2 5000 3000 150 150 550 60 x 90 390
LB11-3A 3 2000 1000 150 150 520 80 x 120 180
LB11-3B 3 3000 2000 150 150 560 80 x 120 320
LB11-3C 3 4000 2000 150 150 560 80 x 120 350
LB11-3D 3 5000 3000 150 150 600 80 x 120 530
LB11-5A 5 2000 1000 100 100 600 80 x 120 300
LB11-5B 5 3000 2000 150 150 650 80 x 120 400
LB11-5C 5 4000 2000 150 150 670 80 x 120 560
LB11-5D 5 5000 3000 150 150 710 80 x 120 780
LB11-8A 8 2000 1000 100 100 630 100 x 150 370
LB11-8B 8 3000 2000 150 150 670 100 x 150 530
LB11-8C 8 4000 2000 150 150 700 100 x 150 640
LB11-8D 8 5000 3000 150 150 750 100 x 150 1000
LB11-10A 10 2000 1000 100 100 700 140 x 210 510
LB11-10B 10 3000 2000 150 150 800 140 x 210 710
LB11-10C 10 4000 2000 150 150 850 140 x 210 920
LB11-10D 10 5000 3000 150 150 900 140 x 210 1300
