| ITEM NO. | WLL |
Breaking Load |

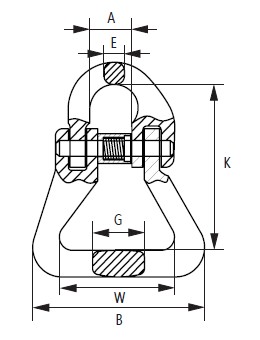

Size（mm） | Weight | |||||
| T | T | A±1.5 | B±2 | K±2 | W±3 | G±2 | E±1.5 | kg | |
| R020-1.12T | 1.12 | 4.48 | 15 | 60 | 56 | 40 | 18 | 7 | 0.2 |
| R020-2T | 2 | 8 | 20 | 61.5 | 64 | 40 | 24 | 8.5 | 0.3 |
| R020-3.15T | 3.15 | 12.6 | 24 | 66 | 83 | 49 | 30.5 | 11 | 0.68 |
| R020-5.3T | 5.3 | 21.2 | 28 | 88 | 93.7 | 54 | 36.8 | 16.5 | 1.47 |
| R020-8T | 8 | 32 | 35 | 108 | 120 | 65.5 | 45.2 | 19.8 | 2.3 |
| R020-12.5T | 12.5 | 50 | 41 | 129 | 138 | 80 | 51.8 | 23 | 3.3 |
| R020-15T | 15 | 60 | 50 | 191 | 180 | 126 | 70 | 26 | 6.89 |
| R020-21.2T | 21.2 | 84.8 | 58 | 228.4 | 209.5 | 152 | 86 | 30 | 11 |
| R020-31.5T | 31.5 | 126 | 72.5 | 252 | 279 | 160 | 91 | 55 | 19 |
