European Wire Rope Clip

Feature:

  • Complies with EN 13411-5
  • Only suitable for fixing wire ropes with a strength grade below 1960 MPa
  • Fixed strength reaches 80% of the wire rope’s breaking load
  • Surface treatment: Dacromet or hot-dip galvanizing
Product Parameter

Item

Suitable Dia（mm）

Clamping quantity

(min)

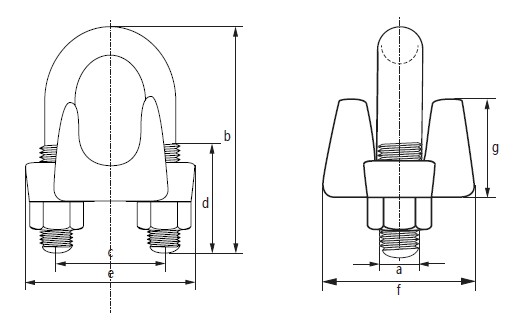

 尺寸（mm） Return length Torque Weight
a b c d e f g mm Nm kg
R182-1/8 3-4 2 5 24 12 11 24 21 10 85 6.1 0.027
R182-3/16 5 2 6 31 15 13 29 24 13 95 10.2 0.065
R182-1/4 6-7 2 8 34 19 13 37 30 18 120 20.3 0.091
R182-5/16 8 3 10 45 22 19 43 33 19 133 40.7 0.136
R182-3/8 9-10 3 11 49 26 19 49 42 25 165 61 0.213
R182-7/16 11-12 3 12 60 30 25 58 46 26 178 88 0.345
R182-1/2 13 3 13 61 30 25 58 48 31 292 88 0.363
R182-9/16 14-15 3 14 72 33 32 63 52 31 305 129 0.472
R182-5/8 16 3 14 74 33 32 64 54 36 305 129 0.481
R182-3/4 18-20 4 16 86 38 37 72 57 38 460 176 0.68
R182-7/8 22 4 19 98 45 41 80 62 40 480 305 0.96
R182-1 24-26 5 19 108 48 46 88 67 47 660 305 1.18
R182-1 1/8 28-30 6 19 117 51 51 91 73 48 860 305 1.32
R182-1 1/4 32-34 7 22 130 59 54 105 79 56 1120 488 1.95
R182-1 3/8 36 7 22 140 60 59 108 79 58 1120 488 2.09
R182-1 1/2 38-40 8 22 147 66 60 112 85 64 1370 488 2.45
R182-1 5/8 41-42 8 25 161 70 67 121 92 67 1470 583 3.18
R182-1 3/4 44-46 8 29 174 78 70 134 97 76 1550 800 4.2
R182-2 48-52 8 32 195 86 78 150 113 85 1800 1017 5.9
